The Viewport

The Viewport is located at the centre of SpotLight’s interface and displays the image. Any changes to the configurations will also be automatically updated on the Viewport. At the bottom of the Viewport is a menu where you can find Environment, Flycam, Interior Cameras, Exterior Cameras, and Animations.

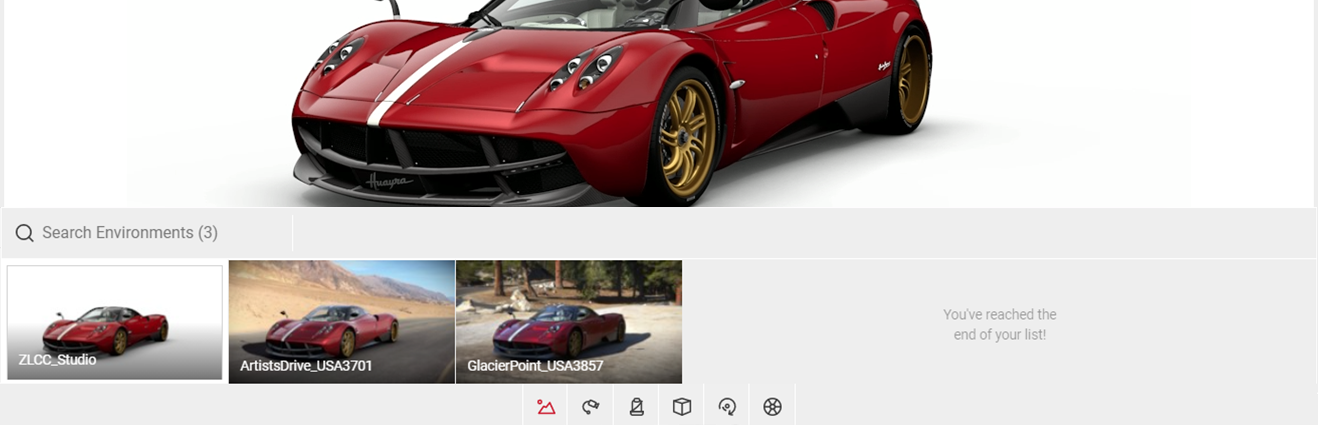

Environment

Select the Environment button to access all the available environments. The environments are imported to your account and cannot therefore be changed. Please contact your admin if you’d like to add or delete your environments.

Flycam

Clicking on the Flycam button enables the Flycam feature in Camera Control. You can disable Flycam by selecting other cameras such as the Exterior and Interior Cameras. Flycam gives you more control so you can move anywhere, the pre-configured camera angles restrict your position so the car is the main focal point. Visit Flycam in Sphere to find out more.

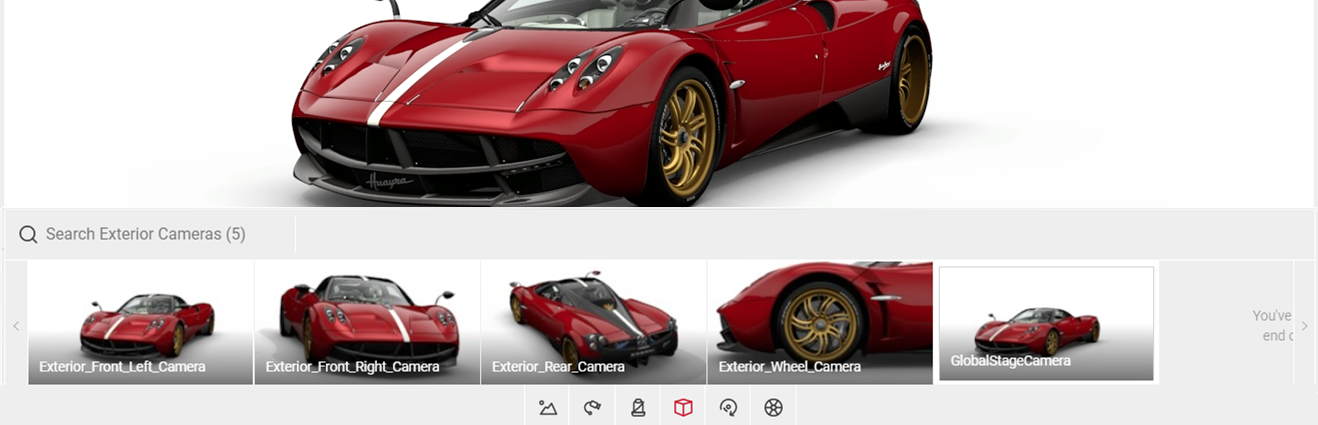

Exterior Camera

Select the Exterior Camera to view the exterior of your car in different angles. Exterior cameras can be configured using the Camera Control feature. Configured cameras can also be saved and shared using the Camera Configurations tab.

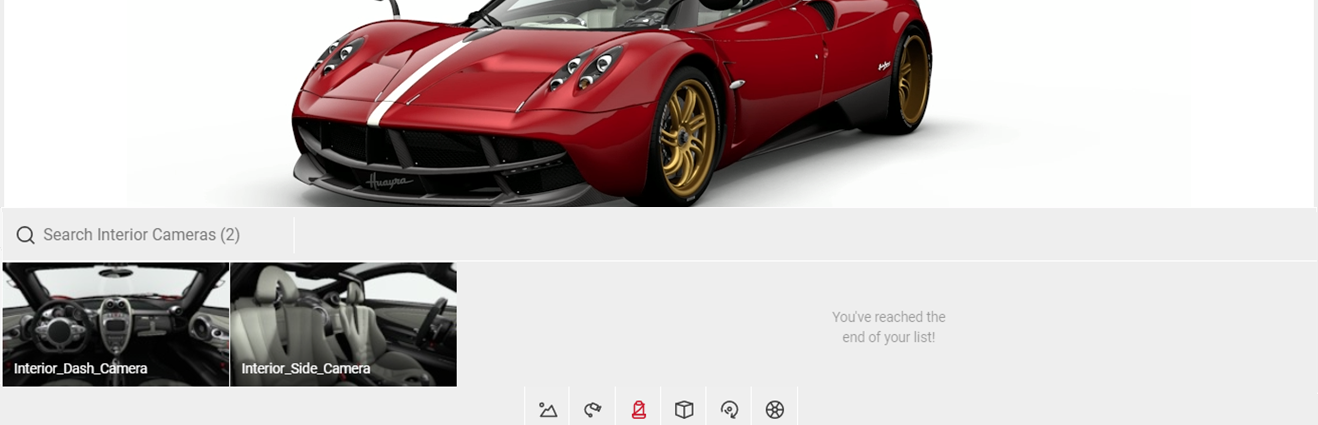

Interior Camera

Select the Interior Camera to view the interior of your car. Interior cameras can also be configured and saved the same way as exterior cameras. If you wish to leave the interior camera view, click on the Exterior Camera button or any saved Exterior Cameras you may have.

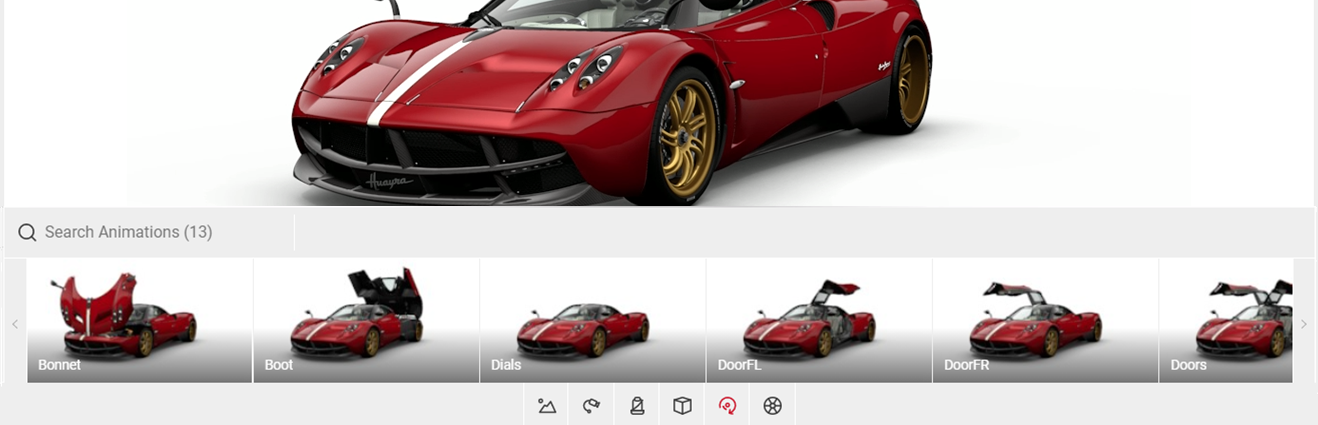

Animations

Clicking on the Animations button will display all the available animations for the car model, including doors, trunk (opening and closing options).

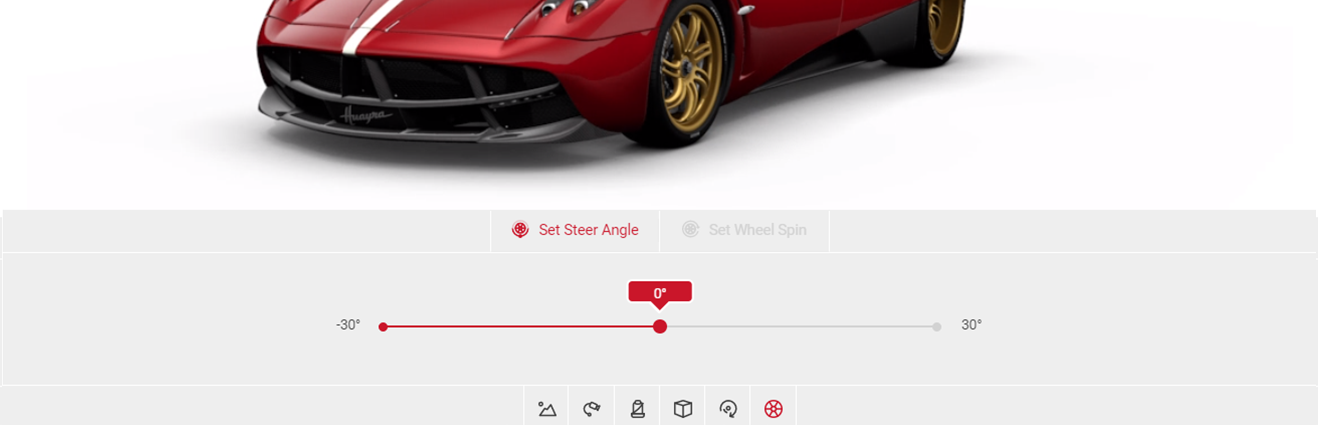

Steer Angle

Select the wheel icon to determine the angle of the front wheels of the car. Select the Steer Angle panel and toggle the slider to adjust the angle in degrees.
